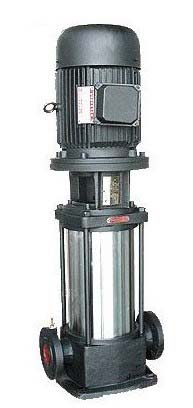

GDLF型立式不锈钢多级离心泵
GDLF型立式不锈钢多级离心泵水力模型先进,高效节能.泵内部叶采用不锈钢冲压成形,流道光滑,避免产生二次污染.轴封采用耐磨机械密封,无泄漏.电机采用Y2铅外壳,进口轴承,绝缘等级F级.泵运转平稳.低噪音,整机质量可靠,外形美观,体积小,重量轻.
全国咨询热线：
0577-67983721
- 产品详细
一、GDLF型立式不锈钢多级离心泵产品概述：
GDLF型立式不锈钢多级离心泵是采用丹麦先进制泵技术制造而成,该系列泵水力模型先进,高效节能.泵内部叶采用不锈钢冲压成形,流道光滑,避免产生二次污染.轴封采用耐磨机械密封,无泄漏.电机采用Y2铅外壳,进口轴承,绝缘等级F级.泵运转平稳.低噪音,整机质量可靠,外形美观,体积小,重量轻,运行安装方便,是理想的绿色,环保,节能水泵。
二、GDLF型立式不锈钢多级离心泵型号意义：
例如：GDLF8-160*10
GDLF-立式多级冲压泵
8-额定流量
160-级数*10
三、GDLF型立式不锈钢多级离心泵特点：
1、冷热清洁,非易燃易爆,不含固体颗粒或纤维的液体
2、液体温度常温型:-15℃至+70℃,热水型+70℃至+115℃.
3、环境温度.环境温度:+40℃.
4、小入口压力:NPSH曲线+0.5m,水头安全余量0.5m.
四、GDLF型立式不锈钢多级离心泵主要用途：
1、医药,食品,饮料等介质输送
2、锅炉补水
3、生活水增压
4、工业循环系统及加工系统
5、环保水处理
6、其它用途
五、GDLF型立式不锈钢多级离心泵性能参数：
|
CDLF型不锈钢立式不锈钢多级离心泵性能参数表 |
|||||
|
型号 |
流量 |
扬程 |
功率 |
转速 |
效率 |
|
|
(m3/h) |
(m) |
(kw) |
(r/min) |
% |
|
GDLF2-20 |
2 |
15 |
0.37 |
2900 |
72 |
|
GDLF2-30 |
2 |
22 |
0.37 |
2900 |
72 |
|
GDLF2-40 |
2 |
30 |
0.55 |
2900 |
72 |
|
GDLF2-50 |
2 |
37 |
0.55 |
2900 |
72 |
|
GDLF2-60 |
2 |
45 |
0.75 |
2900 |
72 |
|
GDLF2-70 |
2 |
52 |
0.75 |
2900 |
72 |
|
GDLF2-80 |
2 |
60 |
1.1 |
2900 |
72 |
|
GDLF2-90 |
2 |
67 |
1.1 |
2900 |
72 |
|
GDLF2-100 |
2 |
75 |
1.1 |
2900 |
72 |
|
GDLF2-110 |
2 |
82 |
1.1 |
2900 |
72 |
|
GDLF2-120 |
2 |
90 |
1.5 |
2900 |
72 |
|
GDLF2-130 |
2 |
97 |
1.5 |
2900 |
72 |
|
GDLF2-140 |
2 |
105 |
1.5 |
2900 |
72 |
|
GDLF2-150 |
2 |
112 |
1.5 |
2900 |
72 |
|
GDLF2-160 |
2 |
120 |
1.5 |
2900 |
72 |
|
GDLF2-170 |
2 |
127 |
1.5 |
2900 |
72 |
|
GDLF2-180 |
2 |
135 |
2.2 |
2900 |
72 |
|
GDLF2-190 |
2 |
142 |
2.2 |
2900 |
72 |
|
GDLF2-200 |
2 |
150 |
2.2 |
2900 |
72 |
|
GDLF2-210 |
2 |
157 |
2.2 |
2900 |
72 |
|
GDLF2-220 |
2 |
165 |
2.2 |
2900 |
72 |
|
GDLF2-230 |
2 |
172 |
3 |
2900 |
72 |
|
GDLF2-240 |
2 |
180 |
3 |
2900 |
72 |
|
GDLF2-250 |
2 |
180 |
3 |
2900 |
72 |
|
GDLF2-260 |
2 |
180 |
3 |
2900 |
72 |
|
GDLF4-20 |
4 |
16 |
0.37 |
2900 |
74 |
|
GDLF4-30 |
4 |
24 |
0.55 |
2900 |
74 |
|
GDLF4-40 |
4 |
32 |
0.75 |
2900 |
74 |
|
GDLF4-50 |
4 |
40 |
1.1 |
2900 |
74 |
|
GDLF4-60 |
4 |
48 |
1.1 |
2900 |
74 |
|
GDLF4-70 |
4 |
56 |
1.1 |
2900 |
74 |
|
GDLF4-80 |
4 |
64 |
1.5 |
2900 |
74 |
|
GDLF4-90 |
4 |
72 |
2.2 |
2900 |
74 |
|
GDLF4-100 |
4 |
80 |
2.2 |
2900 |
74 |
|
GDLF4-110 |
4 |
88 |
2.2 |
2900 |
74 |
|
GDLF4-120 |
4 |
96 |
2.2 |
2900 |
74 |
|
GDLF4-130 |
4 |
104 |
3 |
2900 |
74 |
|
GDLF4-140 |
4 |
112 |
3 |
2900 |
74 |
|
GDLF4-150 |
4 |
120 |
3 |
2900 |
74 |
|
GDLF4-160 |
4 |
128 |
3 |
2900 |
74 |
|
GDLF4-170 |
4 |
136 |
4 |
2900 |
74 |
|
GDLF4-180 |
4 |
144 |
4 |
2900 |
74 |
|
GDLF4-190 |
4 |
152 |
4 |
2900 |
74 |
|
GDLF4-200 |
4 |
160 |
4 |
2900 |
74 |
|
GDLF4-210 |
4 |
168 |
4 |
2900 |
74 |
|
CDLF4-220 |
4 |
176 |
4 |
2900 |
74 |
|
GDLF8-20 |
8 |
18 |
0.75 |
2900 |
76 |
|
GDLF8-30 |
8 |
27 |
1.1 |
2900 |
76 |
|
GDLF8-40 |
8 |
36 |
1.5 |
2900 |
76 |
|
GDLF8-50 |
8 |
45 |
2.2 |
2900 |
76 |
|
GDLF8-60 |
8 |
54 |
2.2 |
2900 |
76 |
|
GDLF8-70 |
8 |
63 |
3 |
2900 |
76 |
|
CDLF型不锈钢不锈钢多级离心泵性能参数表 |
|||||
|
型号 |
流量 |
扬程 |
功率 |
转速 |
效率 |
|
|
(m3/h) |
(m) |
(kw) |
(r/min) |
% |
|
GDLF8-80 |
8 |
72 |
3 |
2900 |
76 |
|
GDLF8-90 |
8 |
81 |
4 |
2900 |
76 |
|
GDLF8-100 |
8 |
90 |
4 |
2900 |
76 |
|
GDLF8-110 |
8 |
99 |
4 |
2900 |
76 |
|
GDLF8-120 |
8 |
108 |
4 |
2900 |
76 |
|
GDLF8-130 |
8 |
117 |
5.5 |
2900 |
76 |
|
GDLF8-140 |
8 |
126 |
5.5 |
2900 |
76 |
|
GDLF8-150 |
8 |
135 |
5.5 |
2900 |
76 |
|
GDLF8-160 |
8 |
144 |
5.5 |
2900 |
76 |
|
GDLF8-170 |
8 |
153 |
7.5 |
2900 |
76 |
|
GDLF8-180 |
8 |
162 |
7.5 |
2900 |
76 |
|
GDLF8-190 |
8 |
171 |
7.5 |
2900 |
76 |
|
GDLF8-200 |
8 |
180 |
7.5 |
2900 |
76 |
|
GDLF16-20 |
16 |
24 |
2.2 |
2900 |
84 |
|
GDLF16-30 |
16 |
36 |
3 |
2900 |
84 |
|
GDLF16-40 |
16 |
48 |
4 |
2900 |
84 |
|
GDLF16-50 |
16 |
60 |
5.5 |
2900 |
84 |
|
GDLF16-60 |
16 |
72 |
5.5 |
2900 |
84 |
|
GDLF16-70 |
16 |
84 |
7.5 |
2900 |
84 |
|
GDLF16-80 |
16 |
96 |
7.5 |
2900 |
84 |
|
GDLF16-90 |
16 |
108 |
11 |
2900 |
84 |
|
GDLF16-100 |
16 |
120 |
11 |
2900 |
84 |
|
GDLF16-110 |
16 |
132 |
11 |
2900 |
84 |
|
GDLF16-120 |
16 |
144 |
11 |
2900 |
84 |
|
GDLF16-130 |
16 |
156 |
15 |
2900 |
84 |
|
GDLF16-140 |
16 |
168 |
15 |
2900 |
84 |
|
GDLF32-10-1 |
32 |
10 |
1.5 |
2900 |
77 |
|
GDLF32-10 |
32 |
14.5 |
2.2 |
2900 |
77 |
|
GDLF32-20-2 |
32 |
20 |
3.0 |
2900 |
77 |
|
GDLF32-20 |
32 |
29 |
4.0 |
2900 |
77 |
|
GDLF32-30-2 |
32 |
35 |
5.5 |
2900 |
77 |
|
GDLF32-30 |
32 |
43.5 |
5.5 |
2900 |
77 |
|
GDLF32-40-2 |
32 |
50 |
7.5 |
2900 |
77 |
|
GDLF32-40 |
32 |
58 |
7.5 |
2900 |
77 |
|
GDLF32-50-2 |
32 |
65 |
11 |
2900 |
77 |
|
GDLF32-50 |
32 |
72.5 |
11 |
2900 |
77 |
|
GDLF32-60-2 |
32 |
80 |
11 |
2900 |
77 |
|
GDLF32-60 |
32 |
87 |
11 |
2900 |
77 |
|
GDLF32-70-2 |
32 |
95 |
15 |
2900 |
77 |
|
GDLF32-70 |
32 |
101.5 |
15 |
2900 |
77 |
|
GDLF32-80-2 |
32 |
110 |
15 |
2900 |
77 |
|
GDLF32-80 |
32 |
115.5 |
15 |
2900 |
77 |
|
GDLF32-90-2 |
32 |
125 |
18.5 |
2900 |
77 |
|
GDLF32-90 |
32 |
130 |
18.5 |
2900 |
77 |
|
GDLF32-100-2 |
32 |
140 |
18.5 |
2900 |
77 |
|
GDLF32-100 |
32 |
144.5 |
18.5 |
2900 |
77 |
|
CDLF型不锈钢不锈钢多级离心泵性能参数表 |
|||||
|
型 号 |
流 量 |
扬 程 |
功 率 |
转 速 |
效 率 |
|
|
(m3/h) |
(m) |
(kw) |
(r/min) |
(%) |
|
GDLF32-110-2 |
32 |
155 |
22 |
2900 |
77 |
|
GDLF32-110 |
32 |
160 |
22 |
2900 |
77 |
|
GDLF32-120-2 |
32 |
170 |
22 |
2900 |
77 |
|
GDLF32-120 |
32 |
174.5 |
22 |
2900 |
77 |
|
GDLF32-130-2 |
32 |
185 |
30 |
2900 |
77 |
|
GDLF32-130 |
32 |
189 |
30 |
2900 |
77 |
|
GDLF32-140-2 |
32 |
200 |
30 |
2900 |
77 |
|
GDLF32-140 |
32 |
213.5 |
30 |
2900 |
77 |
|
GDLF45-10-1 |
45 |
12 |
4 |
2900 |
79 |
|
GDLF45-10 |
45 |
20 |
5.5 |
2900 |
79 |
|
GDLF45-20-2 |
45 |
26 |
7.5 |
2900 |
79 |
|
GDLF45-30 |
45 |
35 |
11 |
2900 |
79 |
|
GDLF45-30-2 |
45 |
40 |
11 |
2900 |
79 |
|
GDLF45-40 |
45 |
48 |
15 |
2900 |
79 |
|
GDLF45-40-2 |
45 |
55 |
15 |
2900 |
79 |
|
GDLF45-50 |
45 |
62 |
18.5 |
2900 |
79 |
|
GDLF45-50-2 |
45 |
70 |
18.5 |
2900 |
79 |
|
GDLF45-60 |
45 |
77 |
22 |
2900 |
79 |
|
GDLF45-60-2 |
45 |
85 |
22 |
2900 |
79 |
|
GDLF45-70 |
45 |
92 |
30 |
2900 |
79 |
|
GDLF45-70-2 |
45 |
100 |
30 |
2900 |
79 |
|
GDLF45-80 |
45 |
107 |
30 |
2900 |
79 |
|
GDLF45-80-2 |
45 |
115 |
30 |
2900 |
79 |
|
GDLF45-90 |
45 |
122 |
30 |
2900 |
79 |
|
GDLF45-90-2 |
45 |
130 |
37 |
2900 |
79 |
|
GDLF45-100 |
45 |
137 |
37 |
2900 |
79 |
|
GDLF45-100-2 |
45 |
145 |
37 |
2900 |
79 |
|
GDLF64-10-1 |
64 |
12 |
4 |
2900 |
80 |
|
GDLF64-10 |
64 |
20 |
5.5 |
2900 |
80 |
|
GDLF64-20-2 |
64 |
26 |
7.5 |
2900 |
80 |
|
GDLF64-20-1 |
64 |
35 |
11 |
2900 |
80 |
|
GDLF64-20 |
64 |
40 |
11 |
2900 |
80 |
|
GDLF64-30-2 |
64 |
48 |
15 |
2900 |
80 |
|
GDLF64-30-1 |
64 |
55 |
15 |
2900 |
80 |
|
GDLF64-30 |
64 |
62 |
18.5 |
2900 |
80 |
|
GDLF64-40-2 |
64 |
70 |
18.5 |
2900 |
80 |
|
GDLF64-40-1 |
64 |
77 |
22 |
2900 |
80 |
|
GDLF64-40 |
64 |
85 |
22 |
2900 |
80 |
|
GDLF64-50-2 |
64 |
92 |
30 |
2900 |
80 |
|
GDLF64-50-1 |
64 |
100 |
30 |
2900 |
80 |
|
GDLF64-50 |
64 |
107 |
30 |
2900 |
80 |
|
GDLF64-60-2 |
64 |
115 |
30 |
2900 |
80 |
|
GDLF64-60-1 |
64 |
122 |
37 |
2900 |
80 |
|
GDLF64-60 |
64 |
130 |
37 |
2900 |
80 |
|
GDLF64-70-2 |
64 |
137 |
37 |
2900 |
80 |
|
GDLF64-70-1 |
64 |
145 |
37 |
2900 |
80 |
|
CDLF64-70 |
64 |
154 |
37 |
2900 |
80 |
